Category Extrusion lines
Kind Pipe lines (flexible)
Brand Bellaform
Model set of 2 extruders
Year 2001

Material PE
Inserts for pipe Ø (a,b,c,..) (mm) none
Extrudertype (a,b,c) (1=single screw 2=dubbel screw) 1,1
Venting point (a,b,c) (0=no 1=yes) 0
Motor (kW)
Screw (a,b,c) (mm) 40 and 28
Screw (a,b,c) L/D 25,25
Calibration Tank Length (mm) 2800
Vacuumpump (kW)
Waterpump (kW)
Winder (model)
Winder (Brand)
Winder corediam. Ø (mm)

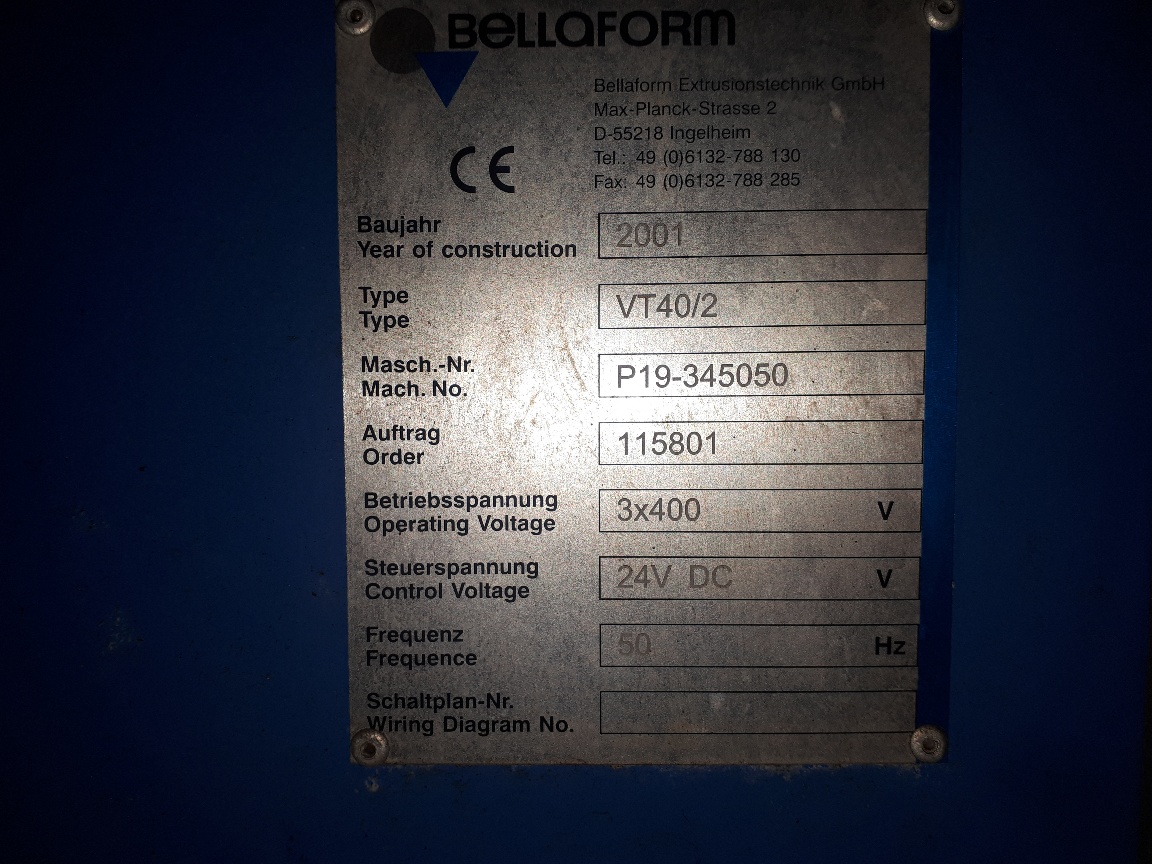

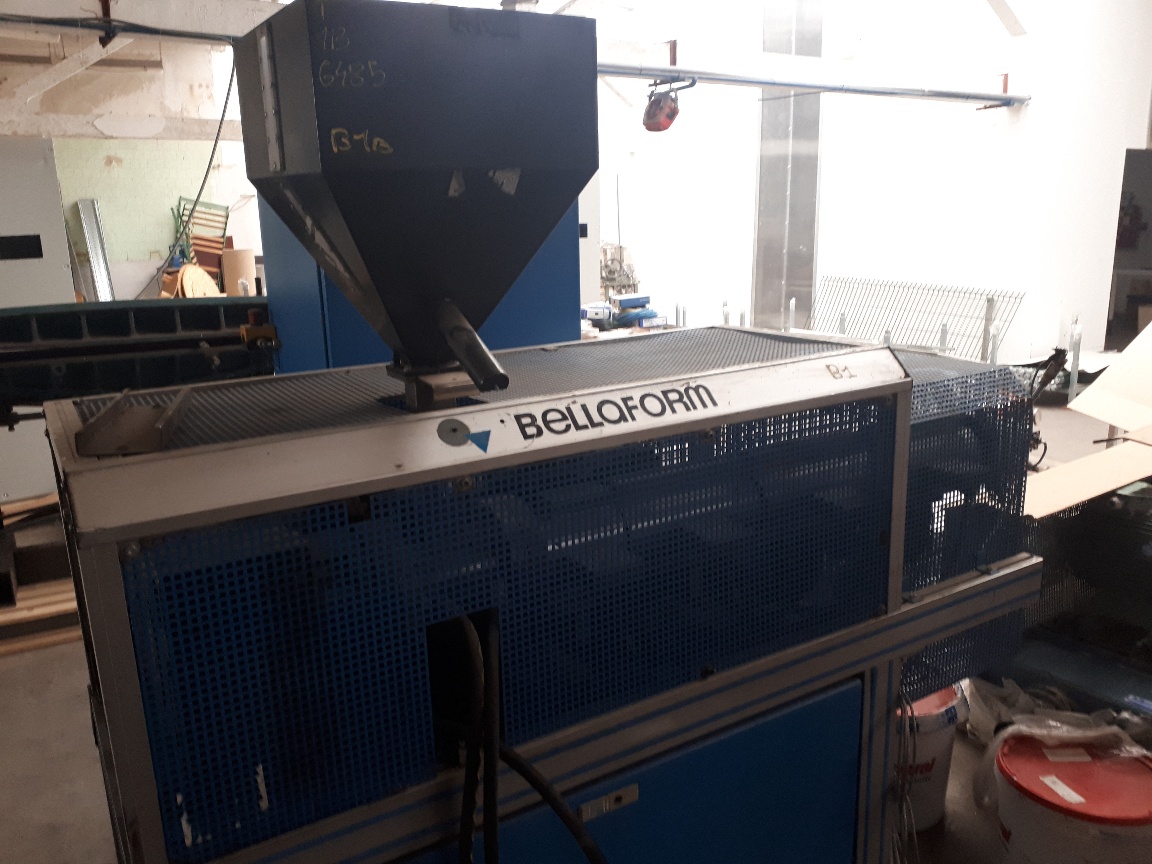

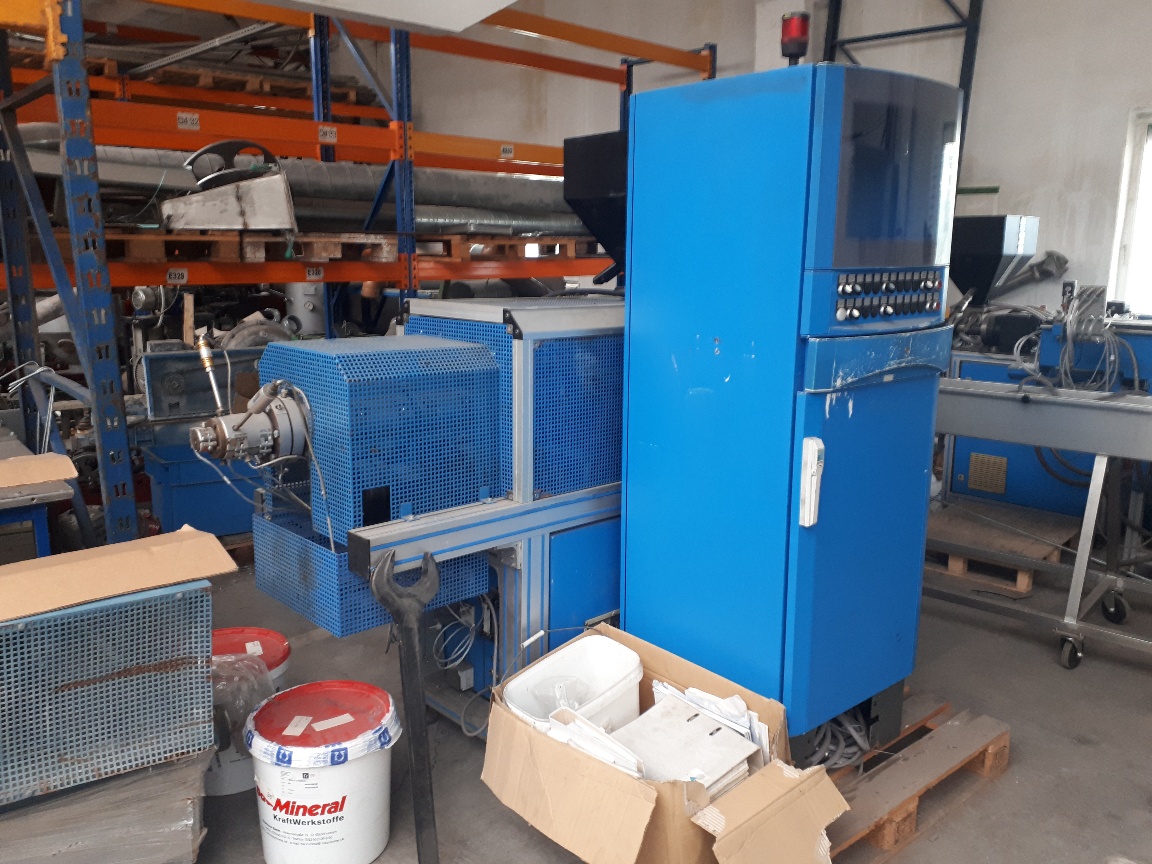

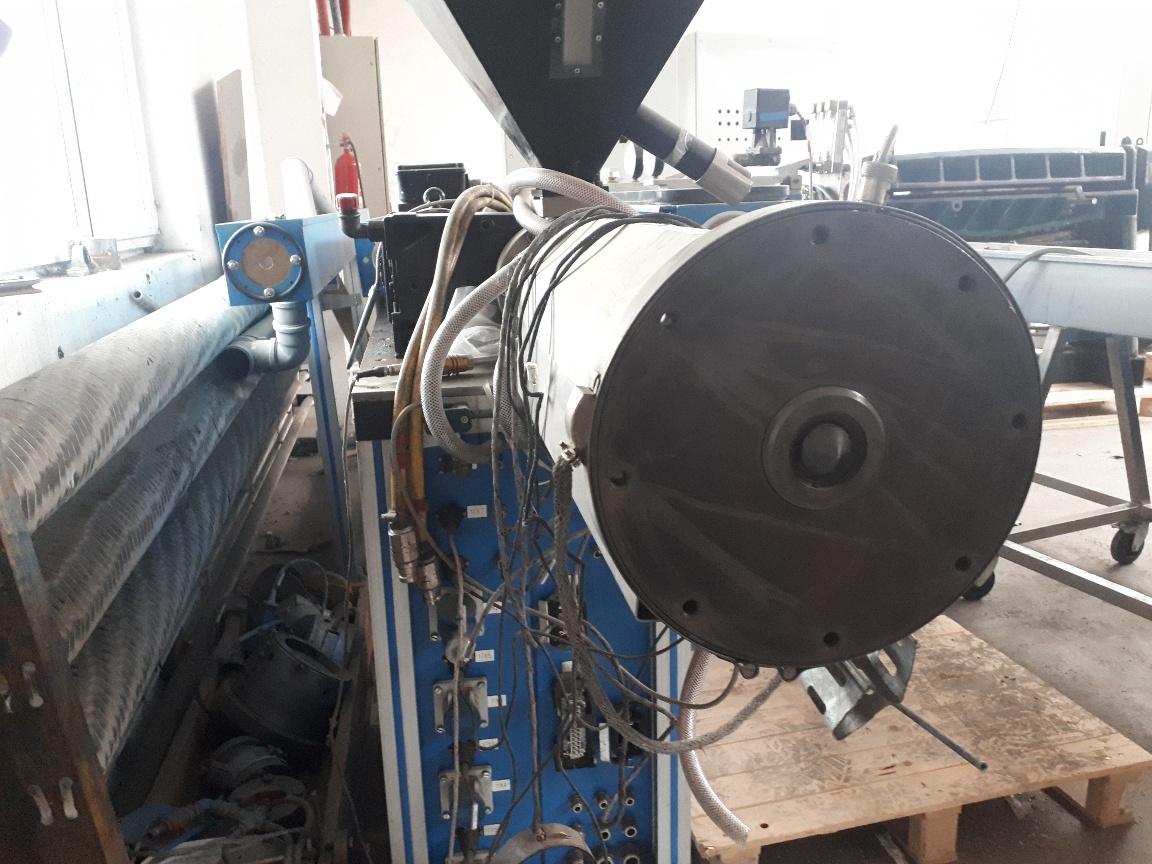

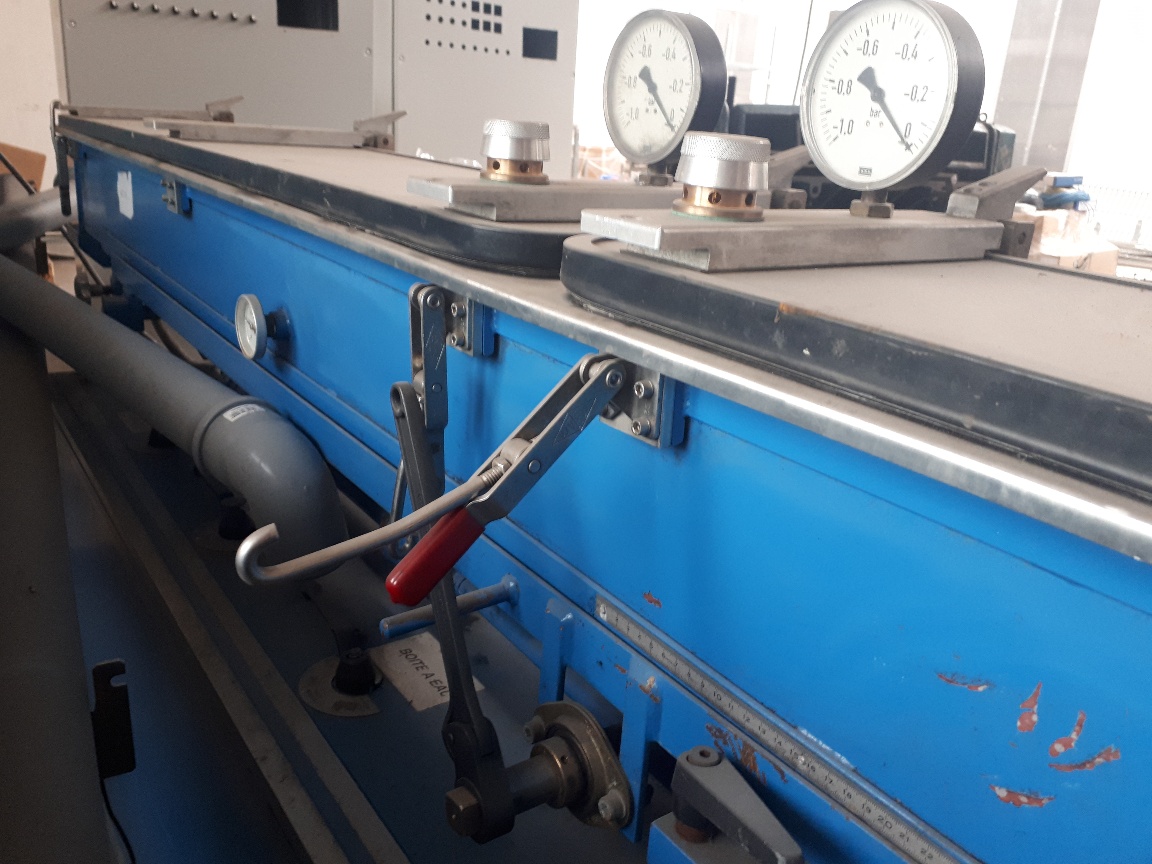

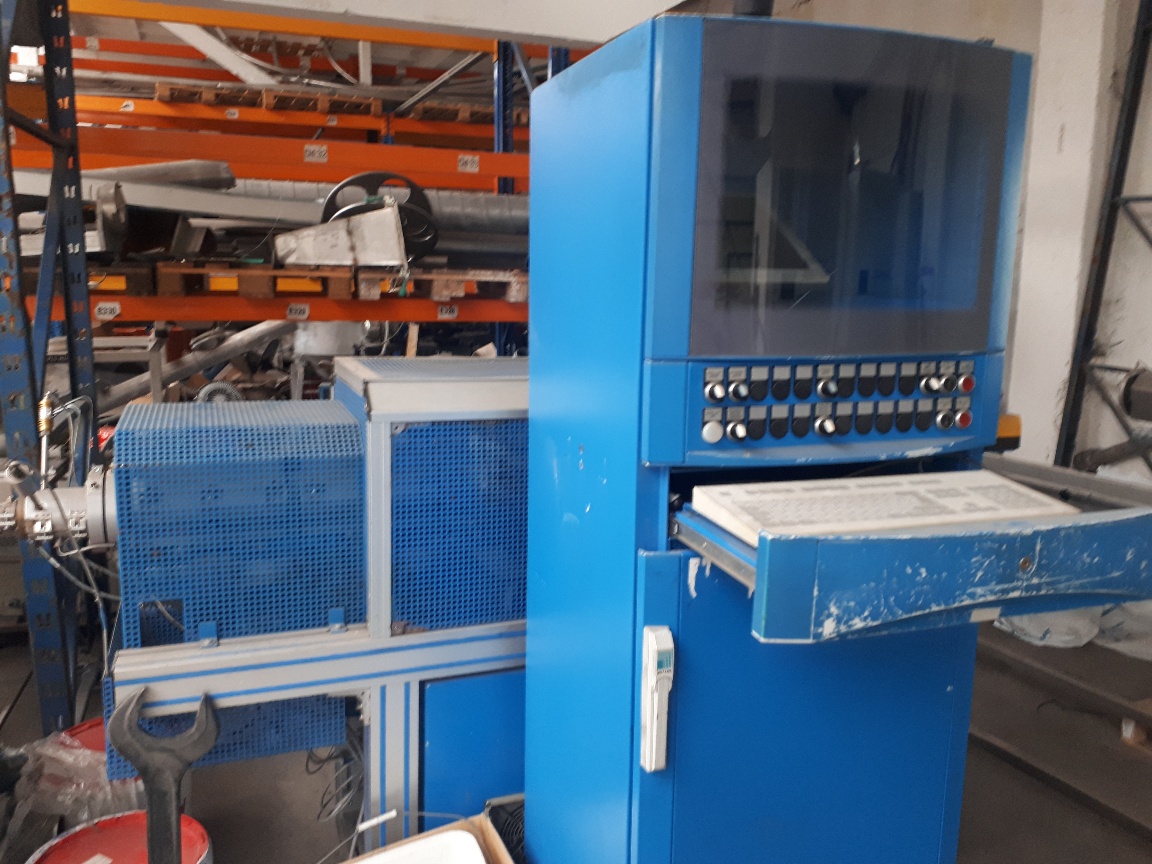

Notes Extruder 1 Make: Bellaform Model: 40-25 Type : Single screw extruder Screw diameter: 40mm LD ratio: 25 Drive: 31 KW PE screw fitted Extruder 2 Make: Bellaform Model: 28-25 Type : Single screw extruder Screw diameter: 28 mm LD ratio: 25 Drive: 10.5 KW PE screw fitted Extra information In full working order, and good condition. The two extruders are controlled by one cabinet and the controls are though a PC. Year of manufacture is 2001. Vacuum tank: Make : Bellaform Model : VT 40/2 Year 2001 Two chamber vacuum tank. Manufactured in stainless steel Length 2300 mm Max pipe dimeter 40 mm. Machine has separate controls. Cooling tanks: (2units) Make : Bellaform Model : unknown Year 2001 Made in stainless steel Length 3000 mm Max diameter 40 mm Extra information tanks In full working order, and good condition.
