Details
| Category | Granulator |
|---|---|
| Kind | Granulator |
| Brand | Tria |
| Model | SMGL-100-TR2 |
| Year | 2013 |
| Rotorwidth (mm) | 260 |
| Rotordiameter (mm) | 200 |
| Motor (kW) | 1.1 |
| Knives (rotor/stator) | 2 |
| Rotortype (1=open 2=closed) | 2 |
| Hopper inlet (lxw) (mm) | 250x250 |

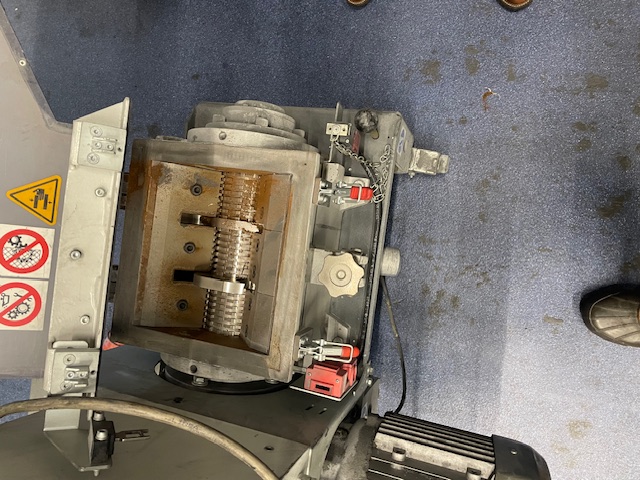

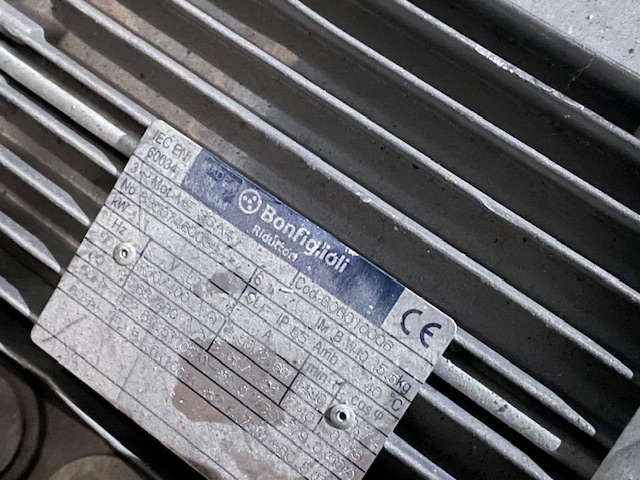

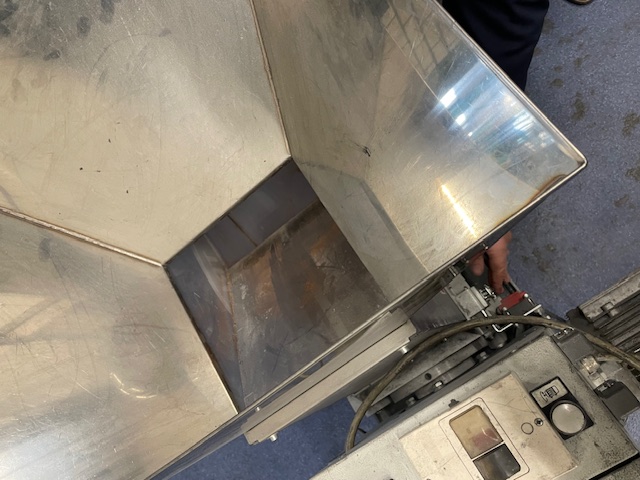

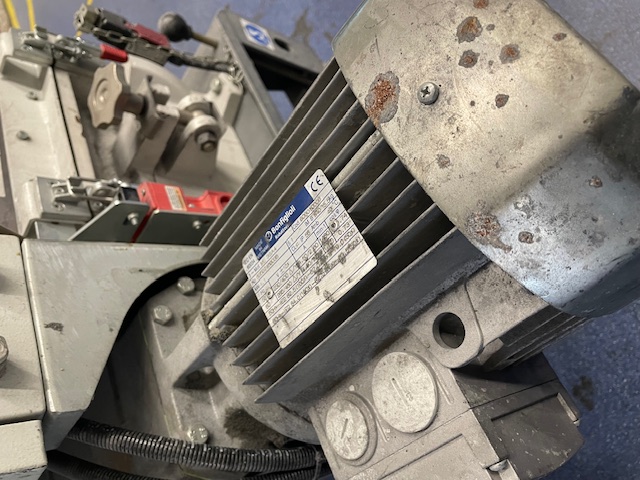

| Notes | 3 units Tria SMGL-100-TR2 slow speed granulators. Addressed to: General Model: SMGL-100-TR2 Age 2013. Drive 1.1 KW Bonfiglioli Cutters 5x5mm Rotor speed 25 rpm Granulation chamber 265x260mm Output rated at about 5 kg/hr. Hoppers Stainless steel. Extra information: No longer in use, stored in dry and heated location, discontinued project. Please check out rotor pictures. Price : Euro 1250,-- each. |
- Images:
-
-
